VM 1060

KINEMATICS has started manufacturing Vertical Machining Center for last one year. We are importing casting from Taiwan . The castings are very rigid and they have wide conatact area between base and Column. We are providing Deta ATC, Royal Spindle & Roller Guideways on the machine. Company is manufacturing five model at the moment. ( VM 710, VM 850, VM 1060, VM 1270 , VM 1370.)

We have machines with X travel ranging from 700 mm to 1300 mm. We can offer BT 40 as standard and BT 50 spindle on selected model.

  • Specifications
  • Accessories
  • Electronic Catlog
  • Dynamic Cutting
  • Silent Feature
Travel For 3-Axes
X-Axis Travel mm 600
Y-Axis Travel mm 410
Z-Axis Travel mm 540
Spindle Nose To Workable Surface mm 100-640
Spindle
Spindle Speed rpm 10000
Automatic Tool Changing System
Number of Tools one of a pair 24
Max. Tool Diameter mm 80/125
Max. Tool Length mm 200
Max. Tool Weight kg 8
Tool Changing Method   Arm
Tool Specifications   BT-40
Motor
Spindle Motor (Continuous/30min. Rated) kw (HP) 5.5/7.5 (7.5/10)
Motors On X/Y/Z-Axis kw 1.5/1.5/2.0
Worktable
Worktable Area mm 700x400
Worktable Max. Load Capacity kg 350
T-Slot (Number X Width X Distance From The Center) mm 5x14x63
Rapid Speed
X-Axis Rapid Speed M/min 36
Y-Axis Rapid Speed M/min 36
Z-Axis Rapid Speed M/min 24
Cutting Feed Rate mm/min 1-20000
Controller
Mitsubishi   M80
Miscellaneous
Machine Weight kg 4200
Power Consumption KVA 15
Coolant Tank Capacity L 200
Compressed Air Source kg / cm2 6

Silent Feature

  • CONSTRUCTION DESIGN
  • ROLLER GUIDEWAYS

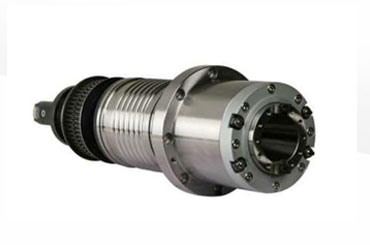

  • SPINDLE
  • RELIABLE ATE
HIGH RIGIDITY, HIGH ACCURACY CONSTRUCTION DESIGN
  •  The major construction parts are based on Mehanite cast iron.They are stable and precision-proved in structure
  •  The enhanced ribs in major construction parts provide the super rigidity for heavy duty cutting or for high speed cutting
  •  Wide base, box-shaped column, enhanced saddle and full supported workpiece structure all contribute to the ability for heavy duty machining
