LITZ Hitech Machines

We provide our clients a qualitative range of LITZ Hitech Machines that are available in diverse specifications as per the demand in the market. These machines can also be obtained in custom made forms if required. Our efficient product range enlists LITZ - Hitech Vertical Machining Center ranging from 600 mm x travel to 2000 mm x travel and LITZ - Horizontal Machining Center available in pallet size LH 500 / 630 / 800 / 1000 / 1250.

Litz also introduce 5 axis machining center model LU 620. Which will be very useful machine. Litz also has drill tap centers.

VERTICAL MACHINING CENTER

Technical Specifications

MODEL		CV 600	CV 800	CV 1000	CV 1200	CV 1400	CV 1400N	CV 1600	CV 2000
X Travel	mm	610	800	1020	1200	1400	1400	1600	2000
Y Travel	mm	410	500	560	600	900	800	900	900
Z Travel	mm	540	540	600	675	800	740	800	800
Spindle Speed	rpm	10000	8000	8000	6000	6000	6000	6000	6000
Spindle tool shank		BT40	BT40	BT40	BT40 / 50	BT40 / 50	BT40 / 50	BT40 /50	BT40 / 50
Spindle Power (Cont./30 Min)	kw	5.5/7.5	7.5/11	7.5/11	11/15/10	15/18.5	15/18.5	15/18.5	15/18.5
Table Size	mm	700 X 400	910 X 500	1000 X 560	1220 X 620	1500 X 850	1500 X 850	1700 X 850	2100 X 850
Automatic tool Changer		Arm / Armless	Arm / Armless	Arm / Armless	Arm	Arm	Arm	Arm	Arm
Max. Load	kg	350	500	750	1000	2000	1600	2000	3000
Rapid Travers	M/min	36 / 36 / 24	24 / 24 / 18	24 /24 / 18	24 /24 / 18	20 /20 / 15	20 /20 / 18	20 /20 / 15	20 /20 / 15
Controller	MITSUBISHI / FANUC
Machine Weight	KG	4200	5300	7000	9000	18000	13000	19000	21000
Power Requirement	KVA	15	15	25	35	40	40	40	40

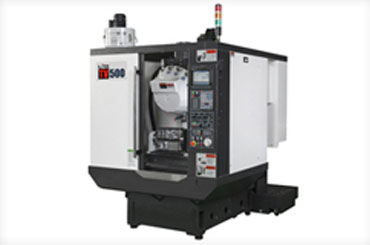

TAPPING CENTER

Technical Specifications

MODEL		TV 500	TV 700
X Travel	mm	500	700
Y Travel	mm	400	400
Z Travel	mm	330	330
Spindle Speed	rpm	12000	12000
Spindle tool shank		BT30	BT30
Spindle Power (Cont./30 Min)	kw	3.7/5.5	3.7/5.5
Table Size	mm	650x400	850x400
Automatic tool Changer		Disc type	Disc type
Max. Load	kg	250	250
Rapid Travers	M/min	60/60/60	60/60/60
Controller		MITSUBISHI / FANUC	MITSUBISHI / FANUC
Machine Weight	KG	2500	3000
Power Requirement	KVA	15	15

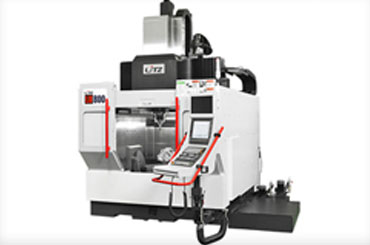

5 AXES MACHINING CENTER

Technical Specifications

MODEL		LU 620	LU 800
X Travel	mm	620	800
Y Travel	mm	520	900+330
Z Travel	mm	460	620
Spindle Speed	rpm	12000	12000
Spindle tool shank		BT40	BT40
Spindle Power (Cont./30 Min)	kw	10/12.5	20/37
Table Size	mm	650x500	800
Automatic tool Changer		Arm	Arm
Max. Load	kg	300	1000
Rapid Travers	M/min	36/36/36	48/48/48
Controller		HEIDENHAIN iTNC530	HEIDENHAIN iTNC530
Machine Weight	KG	8800	19000
Power Requirement	KVA	25	40

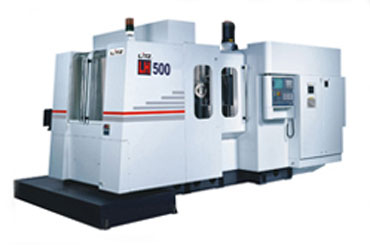

HORIZONTAL MACHINING CENTER

Technical Specifications

MODEL		LH 500A	LH 500B	LH 630A	LH 630B	LH 800B	LH 1000/ LH 1250
X Travel	mm	700	700	1000	1000	1300	2100
Y Travel	mm	650	650	850	850	1200	1235
Z Travel	mm	650	650	950	950	1200	1235/1535
Spindle Speed	rpm	10000	6000	10000	6000	6000	6000
Spindle tool shank		BT40	BT50	BT40	BT 50	BT 50	BT 50
Spindle Power (Cont./30 Min)	kw	15/18.5	15/18.5	22/26	22/26	22/26	22/26
Pallet Size	mm	500 X 500	500 X 500	630 X 630	630 X 630	800 X 800	1250 X 1250
Automatic tool Changer		Arm	Arm	Arm	Arm	Arm	Arm
Max. Pallet Load	kg	500	500	1000	1000	2000	5000
Rapid Travers	M/min	36 X 36 X 36	36 X 36 X 36	32 X 32 X 32	32 X 32 X 32	32 X 32 X 32	24 X 24 X 24
Controller	MITSUBISHI / FANUC
Machine Weight	KG	15000	15000	19000	19000	25000	32000 / 35000
Power Requirement	KVA	42	42	42	42	42	65

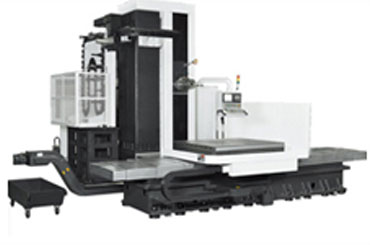

BORING CENTER

Technical Specifications

MODEL		LB 110
X Travel	mm	3000
Y Travel	mm	2100
Z Travel	mm	1500
Spindle Speed	rpm	2500
Spindle tool shank		BT50
Spindle Power (Cont./30 Min)	kw	22/26
Table Size	mm	1440x1600x178
Automatic tool Changer		Arm
Max. Load	kg	8000
Rapid Travers	M/min	10/10/10
Controller		Fanuc OiMD
Machine Weight	KG	27500
Power Requirement	KVA	55
